Casablanca Inteli-Touch Wall Control Install

Ease and Convenience at Your Fingertips with the Casablanca Inteli-Touch
rss



In the last 40 years, ceiling fan controls have evolved from simple pull chains to bulky clickers with basic functions to state-of-the-art wall controls packed with smart features that increase home safety and lower energy use. The Casablanca Inteli-Touch wall control, included with the Casablanca Mission ceiling fan, operates speed, direction of rotation, lighting, and more. It's also easy to install onto an existing fan. The DIY experts here at Del Mar Fans & Lighting put together a how-to video on the Casablanca Inteli-Touch wall control install that is easy to follow, whether you are a ceiling fan novice or expert.








MATERIALS

Wire Cutters

Wire Connectors

Phillip-head screwdriver



PRODUCTS

For this video, we used a Minka Aire Inteli-Touch wall control.




8 Steps to Install Inteli-Touch Wall Control

The Casablanca Inteli-Touch controls six fan speeds, in a forward or reverse direction, and full-range light dimming to create a comfortable and well-lit environment. Many ceiling fans by Casablanca like the Stealth include the Inteli-Touch wall control. The Inteli-Touch can easily be installed into an existing switch box.

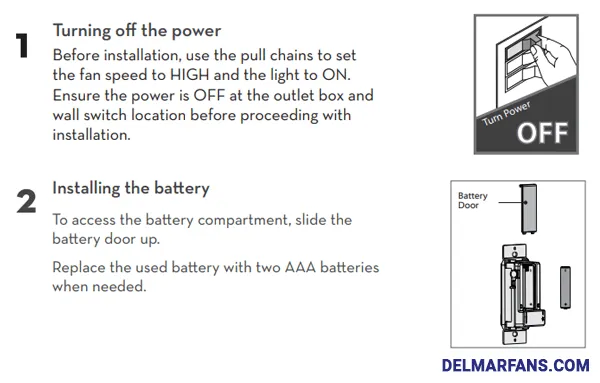

Prior to the Casablanca Inteli-Touch wall control install, turn the power off the circuit breaker box and wall switch. Then, use the steps below to complete the wall control installation:



  1. Casablanca Inteli-Touch Wall ControlRemove the screws and switch plate from the switch box.



  1. Remove the screws holding the switch in the switch box.



  1. Pull the switch from the switch box to expose wiring.



  1. Remove the two wires from the switch box.



  1. Connect the green ground wire from the wall control to the green ground wire in the switch box. Secure with a wire nut.



  1. Connect the black wire and the black wire with a white strip from the wall control to the black wire in the switch box. Secure connection with a wire nut.



  1. Tuck in the wire connections and place the wall control into the switch box.

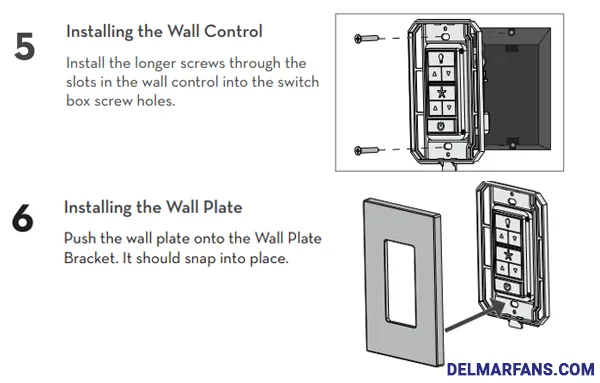

  1. Secure the wall control with the two long screws provided.



  1. Install the wall plate with the screws provided.



Once the installation is complete, use the Automatic Demonstration program to test the operation of the ceiling fan. To start the demonstration program, hold the power button for 3 seconds to turn the fan off and clear the fan’s memory. Then, turn the power back on and press the following buttons in quick succession: Fan and Light, Fan and Light, and Fan. Next, the test program will automatically dim the lights and adjust the fan speed as well as direction for approximately one minute. The Automatic Demonstration program is a quick and easy way, not to mention entertaining, to confirm the ceiling fan control installation was successful. If  the wall control is reversed (as in the fan button is controlling the lights and the light button is controlling the fan), turn off the power at circuit breaker and switch the two black wires. This control wil work with Casablanca fans with lights or ceiling fans without lights.



To ensure the longevity of a Casablanca ceiling fan, do not use more than one ceiling fan per wall control, and do not connect any additional devices to the circuit controlled by the ceiling fan wall control. The Casablanca Inteli-Touch wall control install makes operating your ceiling fan a breeze. This wall control offers many helpful features like Home Safe, a program that automatically turns on and off the fan’s lighting at random intervals to make a home appear occupied. The ceiling fan control also offers Fan Minder, a feature that reduces the fan speed every two hours to maintain comfort, and Light Minder, a feature that automatically turns off the fan’s light after two hours.



Which of these features would you enjoy most in your home? Let us know in the comments below.

Keyvan Geula Lmft
what about how to program the remote. i am having problem with managing the speed of the fan
June 13, 2014 at 5:55 pm
Del Mar Fans & Lighting
Hello Keyvan, Thanks for the great question. If you’re having trouble managing the fan speed, please follow these troubleshooting steps: 1. Replace the existing batteries, preferably with alkaline batteries; 2. Check the connectors are making good contact; 3. Verify the frequency settings (check the dip switches in the receiver and transmitter match). We hope this helps!
June 17, 2014 at 10:58 am
Tony Vitale
just installed a Casablanca Isotpe Fan. It came with a remote control wall unit. Installed per the instructions and "paired" the remote to the fan by holding the power button and the 4 speed button simultaneously and remote unit worked great. However, a friend came over and quickly punched buttons on the remote randomly and now the remote unit seems to have gone stupid. Tried flipping the breaker off and then attempted to resync but doesnt work. Is there a way to clear the receiver and resync?? Model # C30G45L 44"
November 2, 2014 at 3:39 pm
Del Mar Fans & Lighting
Hi Tony, We recommend changing the frequency in order to reset the fan. Use the following steps to reset the wall control: 1. Turn the power off at the circuit breaker 2. Remove the switch plate from the switch box 3. Remove the screws holding the switch in place 4. Remove the wall control from the electrical box to expose the dip switches 5. Change the dip switches as follows: 1 up, 2 down, 3 down, 4 down, 5 down, 6 up; this will ‘break’ the frequency 6. Place the wall control back into the electrical box, secure with the screws provided 7. Replace the switch plate with the screws provided 8. Turn the power on at the circuit breaker 9. Within 20 seconds of restoring power to the ceiling fan, press and hold “1” and reverse buttons for 3 seconds 10. Listen for audible tone Once you’ve heard the audible tone, the command has been accepted and the frequency has been changed. The fan should resume normal function. We hope this helps!
November 3, 2014 at 11:36 am
Tony Vitale
Del Mar Fans & Lighting Control unit is self contained.There are no dip switches on the control unit. There is only a ground wire on the unit.
November 5, 2014 at 4:19 pm
Tony Vitale
I guess you lost interest or dont have the answer...oh well
November 8, 2014 at 3:42 pm
Del Mar Fans & Lighting
Hi Tony Vitale , we apologize for the delay in response. We're still looking into your question, and we will get back to you in a timely manner. Again, we are sorry for the delay in response.
November 10, 2014 at 9:24 am
Del Mar Fans & Lighting
Hi Tony Vitale , We apologize for the delay in response. We recommend reaching out to Casablanca Fan Company customer service at 1-888-227-2178 for additional support. They will be able to provide tailored support.
November 10, 2014 at 5:21 pm
